Grooving GY Series

GYH00A_B
（00° type holder）

1E1R3E1

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

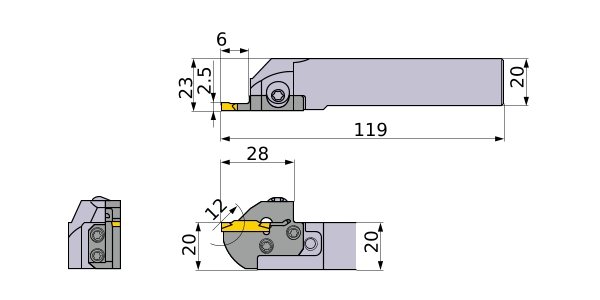

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
CUTDIA 12
B 20
L4 43
LF 119
LH 28
CDX 6
WF 23
H 20
HF 20
CW 2.5
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYHR2020K00-M20R
Modular Blade GYM20RA-E06
2D Model (DXF)
CAD data name Download
1E1R3E1
CAD
