Grooving GY Series

GYA_D90_INCH
（90° type holder）

6F2L9E1

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length I

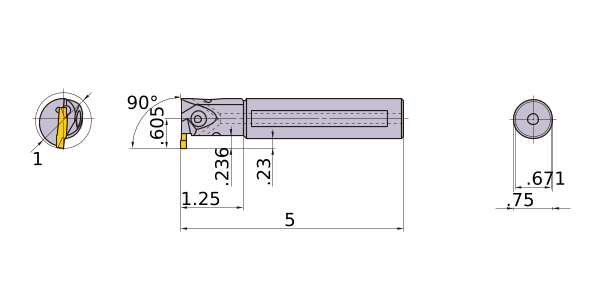

DMIN 1
DCON .75
LF 5
CDX .236
LDRED 1.25
WF .605
H .671
HF .671
CW .098
WF2 .23
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYALUS12K90A-E06
2D Model (DXF)
CAD data name Download
6F2L9E1
