Grooving GY Series

GYA_D90_INCH
（90° type holder）

6H1R9D1

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System

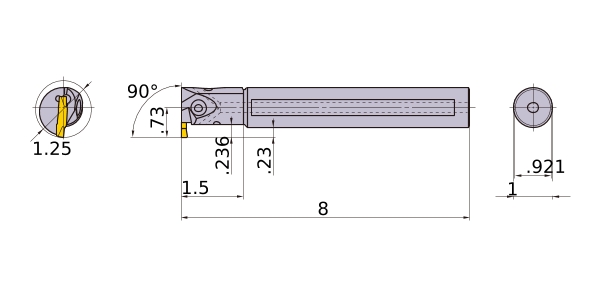

  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length I
DMIN 1.25
DCON 1
LF 8
CDX .236
LDRED 1.5
WF .73
H .921
HF .921
CW .079
WF2 .23
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYARUS16R90B-D06
2D Model (DXF)
CAD data name Download
6H1R9D1
