Grooving GY Series

GYA_D90_INCH
（90° type holder）

6K1R3F1

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

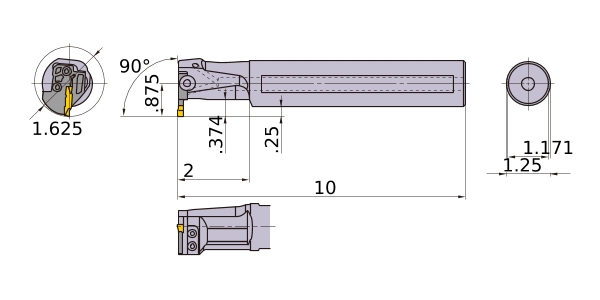

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length I
DMIN 1.625
DCON 1.25
LF 10
CDX .374
LDRED 2
WF .875
H 1.171
CW .118
WF2 .25
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYDRUS20S90C-M20L
Modular Blade GYM20LA-F10
2D Model (DXF)
CAD data name Download
6K1R3F1
