Grooving GY Series

GYA_D90_INCH
（90° type holder）

6P2R4E1

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

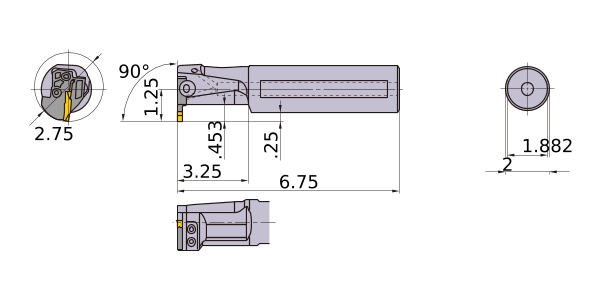

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length I
DMIN 2.75
DCON 2
LF 6.75
CDX .453
LDRED 3.25
WF 1.25
H 1.882
CW .098
WF2 .25
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYDRUS32P90F-M25L
Modular Blade GYM25LA-E12
2D Model (DXF)
CAD data name Download
6P2R4E1
