Grooving GY Series

GYH50C_INCH


3F1L3F1

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length I

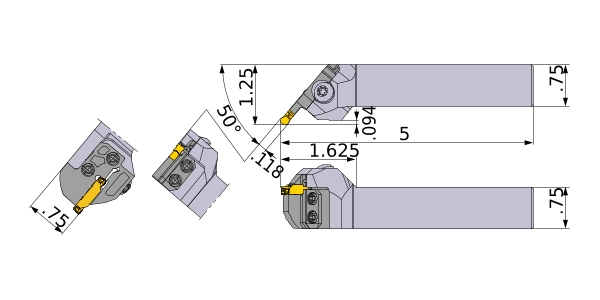

CUTDIA 1.181
B .75
LF 5
LH 1.625
CDX .02
WF 1.25
H .75
HF .75
CW .118
WF2 .094
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYHLUS12C50-M20R
Modular Blade GYM20RC-F005
2D Model (DXF)
CAD data name Download
3F1L3F1
