Grooving GY Series

GYP00_INCH
（00° type holder）

1K1L9K1

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

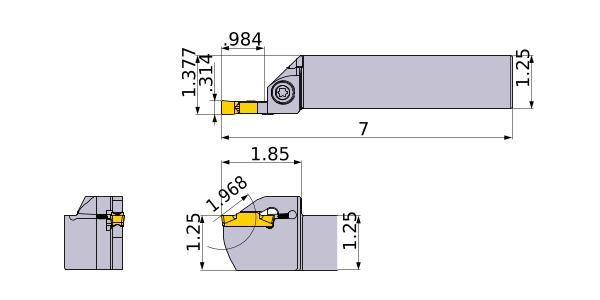

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length I
CUTDIA 1.968
B 1.25
L4 2.875
LF 7
LH 1.85
CDX .984
WF 1.377
H 1.25
HF 1.25
CW .314
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYPLUS20D00-K25
2D Model (DXF)
CAD data name Download
1K1L9K1
