Insert for Rotating Tools

TEEN32PESR1 EDP:508955

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC5020
Order Number TEEN1603PESR1
Sales unit 10
Stock

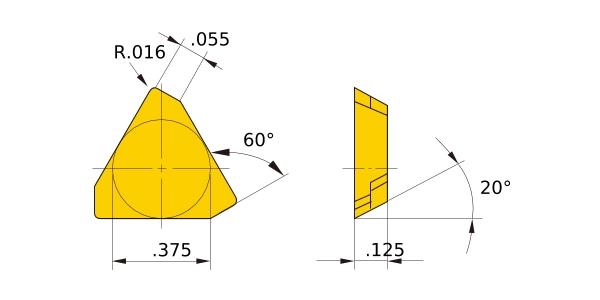

Unit of Length I
IC .375
AN 20°
BS .055
S .125
KRINS 60°
RE .016
Classification of Grades
Coated・Carbide F7030
