Insert for Rotating Tools

ZCMX09T308ERA EDP:109256

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UP20M
Order Number ZCMX09T308ER-A
Sales unit 10
Stock
Unit of Length I

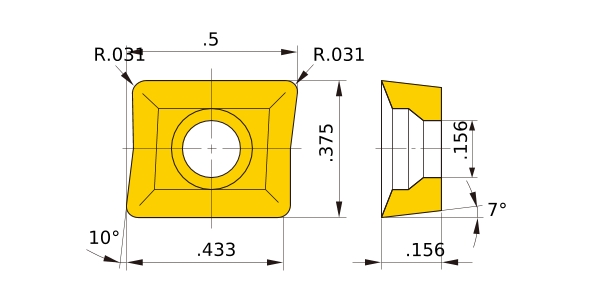

D1 .156
AN 7°
LE .433
L .5
W1 .375
S .156
RE .031
Classification of Grades
Coated・Carbide F7030
Coated・Carbide VP15TF
Non-coated・Carbide UTi20T
