XDGT1550PDFR-G20 EDP:404179

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade LC15TF
Order Number XDGT1550PDFR-G20
Sales unit 10
Stock
Unit of Length I

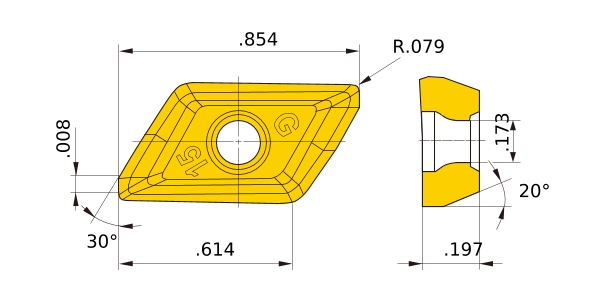

D1 .173
AN 20°
INSL .63
LE .614
L .854
BS .008
S .197
RE .079
Classification of Grades
Non-coated・Carbide TF15
2D Model (DXF)
CAD data name Download
XDGT1550PDFR-G20
CAD
