Insert for Rotating Tools

RDMW0620M0E EDP:526678

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP8010
ANSI RDMW0620M0E
Sales unit 10
Stock
Unit of Length M

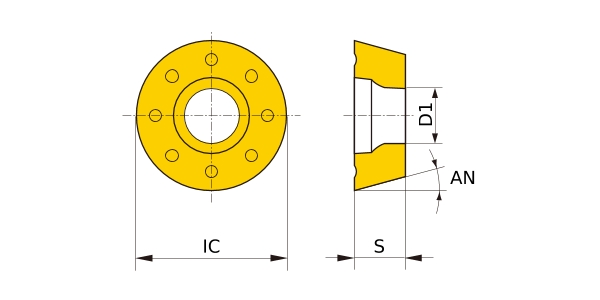

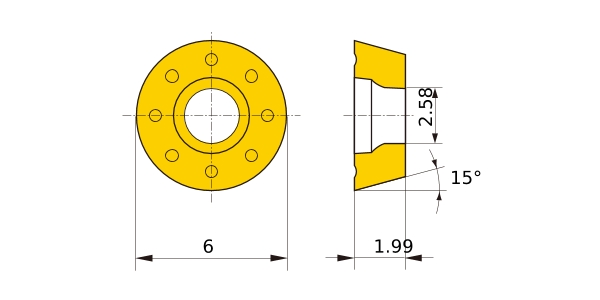

D1 2.58
IC 6
AN 15°
S 1.99
RE 3
Tolerance IC:±0.025 S:±0.025
Classification of Grades
Coated・Carbide VP15TF
