Insert for Rotating Tools >JOMW06T215ZZSR-FT

Insert for Rotating Tools

JOMW06T215ZZSR-FT EDP:329068

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP30RT
Order Number JOMW06T215ZZSR-FT
Sales unit 10
Stock

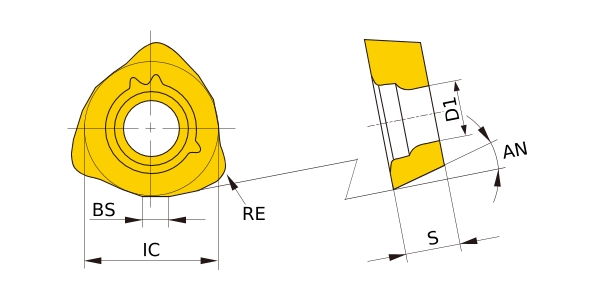

Unit of Length I
D1 .116
IC .25
AN 13°
BS .047
S .109
RE .059
Breaker FT
Classification of Grades
Coated・Carbide MP7130
Coated・Carbide MP7140
Coated・Carbide MP6120
Coated・Carbide MP6130
Coated・Carbide MP9120
Coated・Carbide MP9130
Coated・Carbide MV1020
Coated・Carbide MV1030
Coated・Carbide FH7020
Coated・Carbide VP15TF
