Name of Grade Carbide
Grade VP20RT
ANSI JPMX190412-JM
Sales unit 10
Stock
Unit of Length M

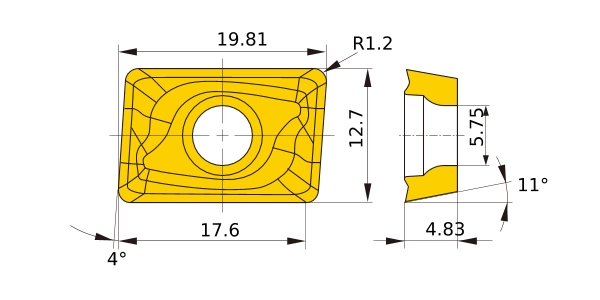

D1 5.75
EPSR 86°
AN 11°
LE 17.6
L 19.81
W1 12.7
S 4.83
RE 1.2
Classification of Grades
Coated・Carbide VP15TF
