Insert for Rotating Tools

JPMX140412-WH EDP:511257

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade VP15TF
Order Number JPMX140412-WH
Sales unit 10
Unit of Length I

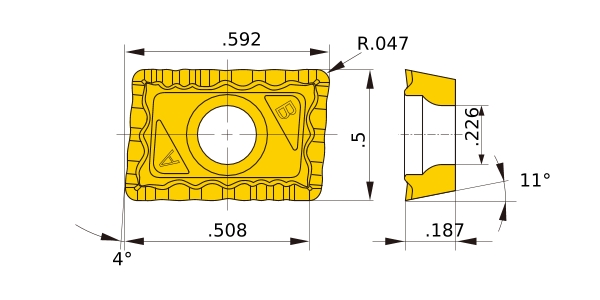

D1 .226
EPSR 86°
AN 11°
LE .508
L .592
W1 .5
S .187
RE .047
Classification of Grades
Coated・Carbide VP20RT
3D Detail Model (STP,STL)
CAD data name Download


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
