Insert for Rotating Tools

TAWNH1930T EDP:360612

Product Information

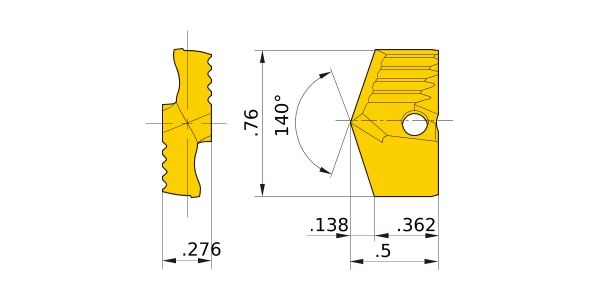

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number TAWNH1930T
Sales unit 1
Stock
Unit of Length I
SIG 140°
LF .362
INSL .5
S .276
CDI .76
PL .138
