Insert for Rotating Tools

QOGT1959R-G1 EDP:212556

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
ANSI QOGT1959R-G1
Sales unit 10
Stock
Unit of Length M

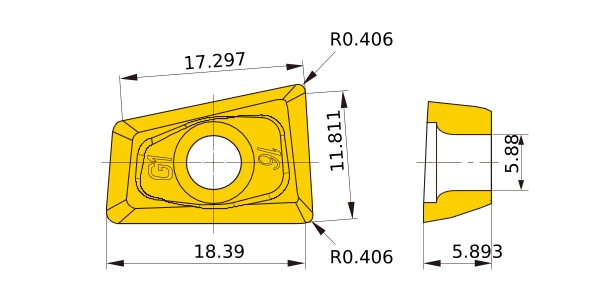

D1 5.88
LE1 18.39
LE2 11.811
LE3 17.297
S 5.893
RE 0.406
Classification of Grades
Coated・Carbide MP6120
Coated・Carbide MP9120
2D Model (DXF)
CAD data name Download
QOGT1959R-G1
CAD
