Insert for Rotating Tools

SRFT0500 EDP:538062

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP8010
Order Number SRFT0500
Sales unit 2
Stock

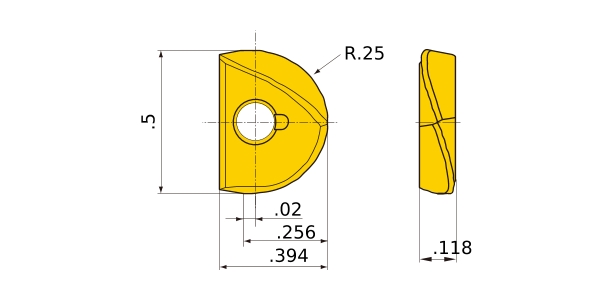

Unit of Length I
D1 3.5
IC .5
LE .256
L .394
BS .02
S .118
RE .25
Tolerance IC:0 - -.0011 RE:±.00024 L:±.0006
Classification of Grades
Coated・Carbide EP6120
Coated・Carbide VP15TF
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Indexable End Mills
