Insert for Rotating Tools

SRM212C EDP:330229

Product Information

The actual product may differ from the displayed image.

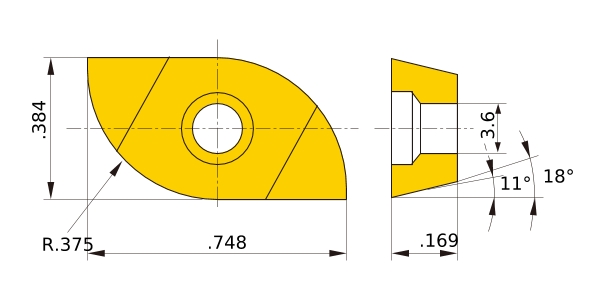

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI SRM212C
Sales unit 10
Stock
Unit of Length M

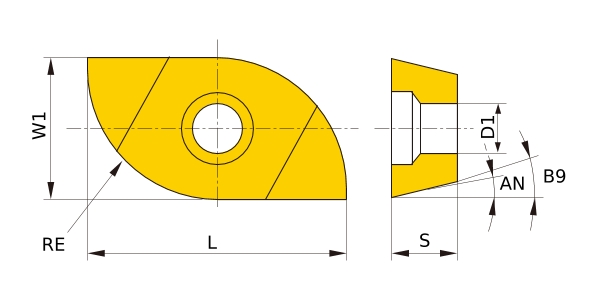

D1 91.44
B9 18°
AN 11°
L 18.999
W1 9.754
S 4.293
RE 9.525
Classification of Grades
Coated・Carbide MP6120
Coated・Carbide MP9120
2D Model (DXF)
CAD data name Download
SRM212C
