Insert for Rotating Tools

SRM216C-M EDP:252873

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number SRM216C-M
Sales unit 10
Stock

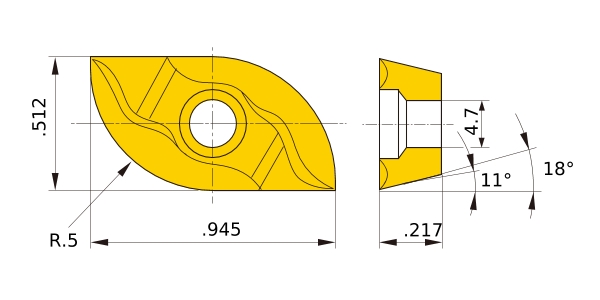

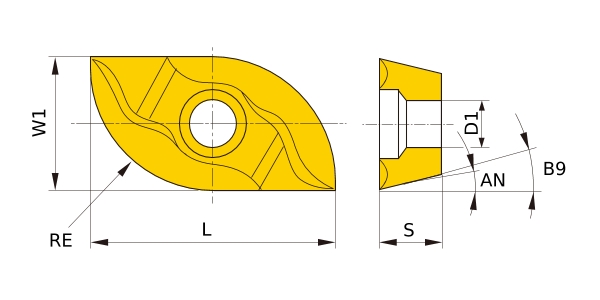

Unit of Length I
D1 4.7
B9 18°
AN 11°
L .945
W1 .512
S .217
RE .5
Classification of Grades
Coated・Carbide MP6120
Coated・Carbide MP9120
