Insert for Rotating Tools

SRM216E-M EDP:252881

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI SRM216E-M
Sales unit 10
Stock
Unit of Length M

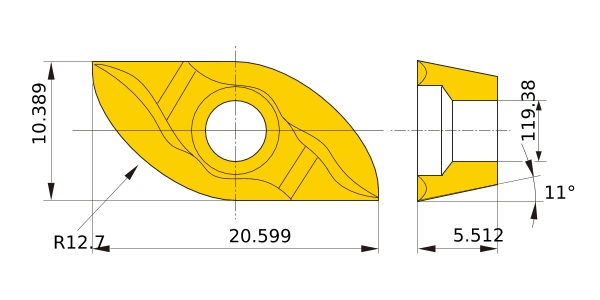

D1 119.38
AN 11°
L 20.599
W1 10.389
S 5.512
RE 12.7
Classification of Grades
Coated・Carbide MP6120
Coated・Carbide MP9120
2D Model (DXF)
CAD data name Download
SRM216E-M
