Insert for Rotating Tools

WEEW13T3AGER8C EDP:614977

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC5020
ANSI WEEW13T3AGER8C
Sales unit 10
Stock
Unit of Length M

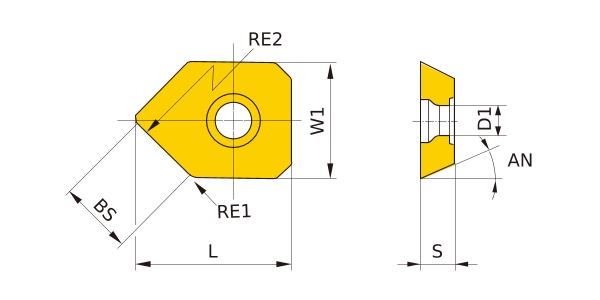

D1 4.3
AN 20°
L 16.6
W1 16.48
BS 7.5
S 3.97
R 500
RE1 1.5
RE2 500
Classification of Grades
Coated・Carbide VP15TF
Non-coated・Carbide HTi05T
2D Model (DXF)
CAD data name Download
WEEW13T3AGER8C
CAD
