Insert for Rotating Tools

STAWN1680T EDP:646944

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI STAWN1680T
Sales unit 1
Stock
Unit of Length M

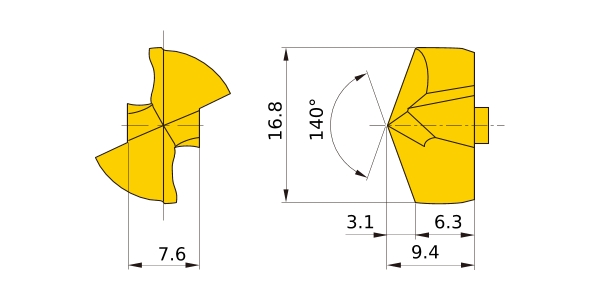

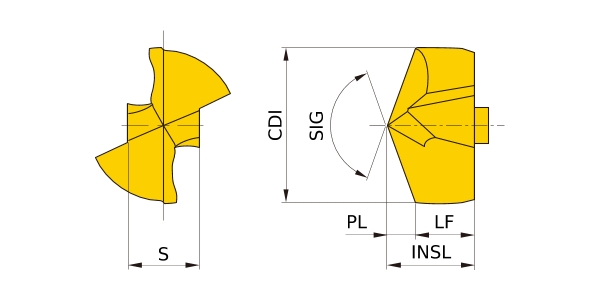

SIG 140°
LF 6.3
INSL 9.4
S 7.6
CDI 16.8
PL 3.1
2D Model (DXF)
CAD data name Download
STAWN1680T
CAD
