XNMU190912R-LS EDP:641051

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP9130
ANSI XNMU190912R-LS
Sales unit 10
Stock
Unit of Length M

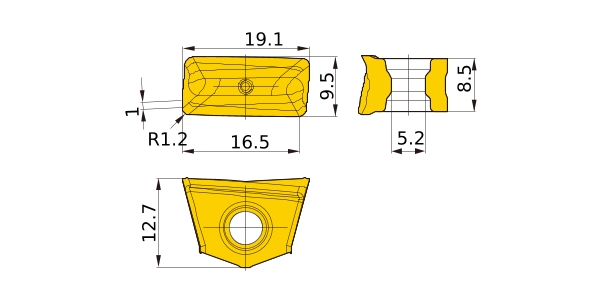

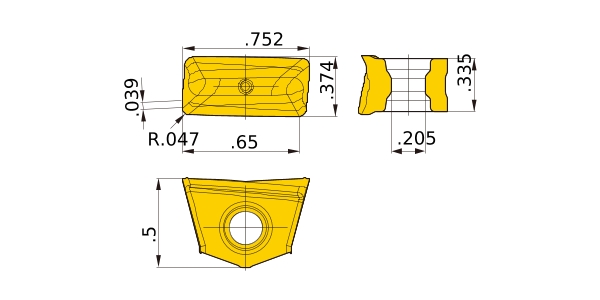

D1 5.2
INSL 12.7
LE 16.5
L 19.1
W1 9.5
BS 1
S 8.5
RE 1.2
2D Model (DXF)
CAD data name Download
XNMU190912R-LS
