Insert for Rotating Tools

SOMX094506-US EDP:824624

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI SOMX094506-US
Sales unit 10
Stock
Unit of Length M

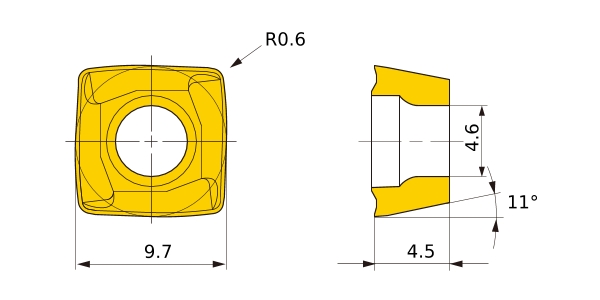

D1 4.6
IC 9.7
AN 11°
S 4.5
RE 0.6
