Insert for Rotating Tools

SRM210C-M EDP:10529904

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP9120
ANSI SRM210C-M
Sales unit 10
Stock
Unit of Length M

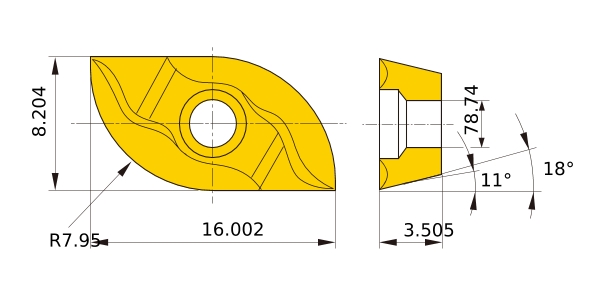

D1 78.74
B9 18°
AN 11°
L 16.002
W1 8.204
S 3.505
RE 7.95
Classification of Grades
Coated・Carbide MP6120
Coated・Carbide VP15TF
