STAWN0039TH EDP:10531167

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number STAWN0039TH
Sales unit 1
Stock
Unit of Length I

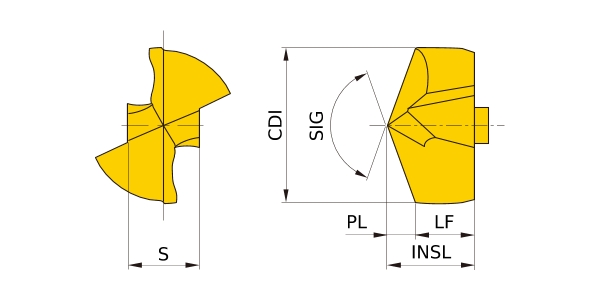

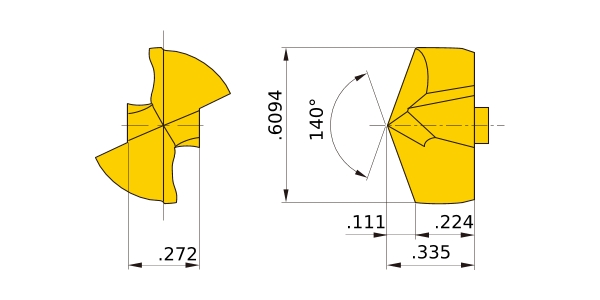

SIG 140°
LF .224
INSL .335
S .272
CDI .6094
PL .111
2D Model (DXF)
CAD data name Download
STAWN0039TH
CAD
