Insert for Rotating Tools

SOGX084005-UN EDP:10568200

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Order Number SOGX084005-UN
Sales unit 10
Stock
Unit of Length I

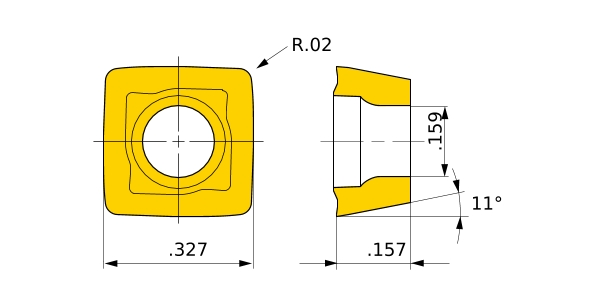

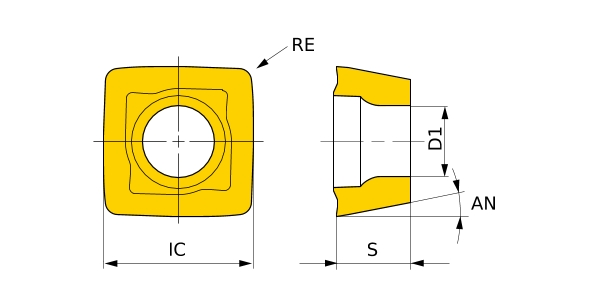

D1 .159
IC .327
AN 11°
S .157
RE .02
Breaker UN
2D Model (DXF)
CAD data name Download
SOGX084005-UN
CAD
