Insert for Rotating Tools

SOGX115506-UN EDP:10568224

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Order Number SOGX115506-UN
Sales unit 10
Stock

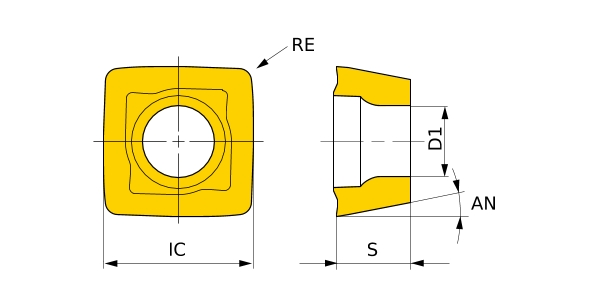

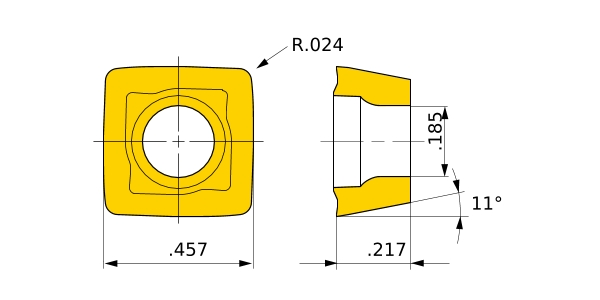

Unit of Length I
D1 .185
IC .457
AN 11°
S .217
RE .024
Breaker UN
2D Model (DXF)
CAD data name Download
SOGX115506-UN
