Insert for Rotating Tools

XNMU160732R-MS EDP:10573341

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP9130
Order Number XNMU160732R-MS
Sales unit 10
Stock
Unit of Length I

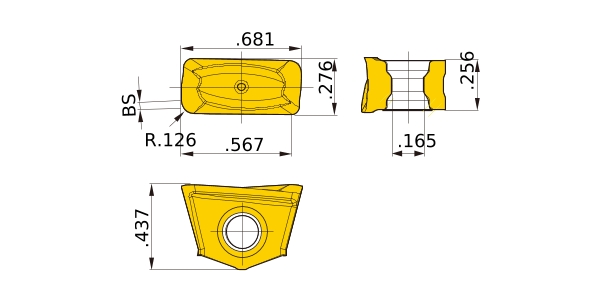

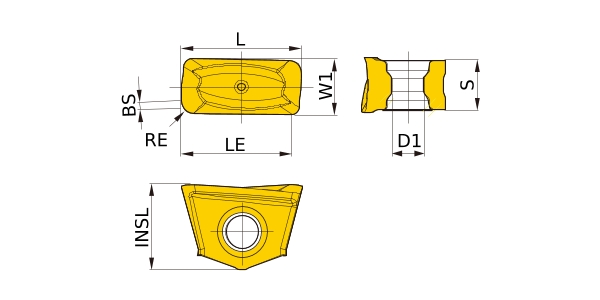

D1 .165
INSL .437
LE .567
L .681
W1 .276
S .256
RE .126
2D Model (DXF)
CAD data name Download
XNMU160732R-MS
