Insert for Rotating Tools >NP-GOEN1404PXSR05

Insert for Rotating Tools

NP-GOEN1404PXSR05 EDP:10615324

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade CBN
Grade MB4120
Order Number NP-GOEN1404PXSR05
Sales unit 1
Stock
Unit of Length I

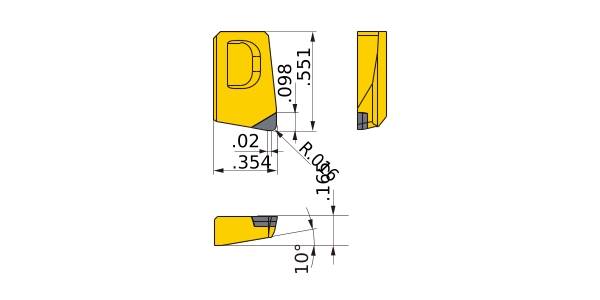

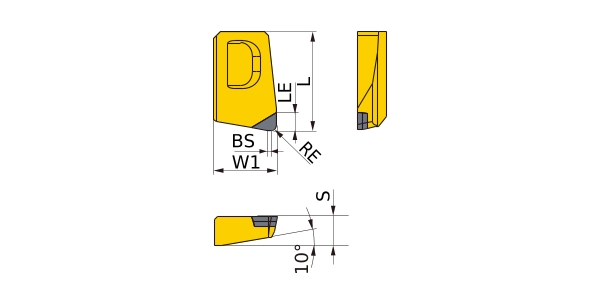

LE .098
L .551
W1 .354
BS .02
S .165
RE .016
2D Model (DXF)
CAD data name Download
NP-GOEN1404PXSR05
CAD
