Insert for Rotating Tools >JPGX1404080PPER-JM

Insert for Rotating Tools

JPGX1404080PPER-JM EDP:10614303

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP9140
Order Number JPGX1404080PPER-JM
Sales unit 10
Stock
Unit of Length I

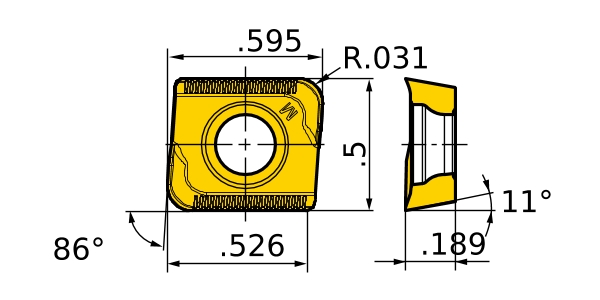

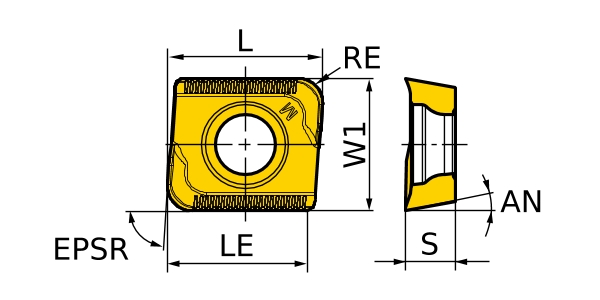

EPSR 86°
AN 11°
LE .526
L .595
W1 .5
S .189
RE .031
Breaker JM
2D Model (DXF)
CAD data name Download
JPGX1404080PPER-JM
CAD
