Insert for Rotating Tools >SPGX1204100PPER-JM

Insert for Rotating Tools

SPGX1204100PPER-JM EDP:10614297

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP9140
Order Number SPGX1204100PPER-JM
Sales unit 10
Stock

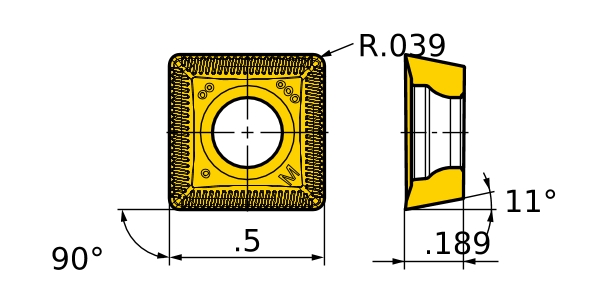

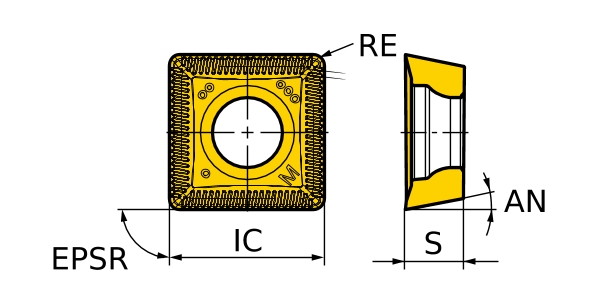

Unit of Length I
IC .5
EPSR 90°
AN 11°
S .189
RE .039
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
