Solid End Mills >VF3XB >VF3XBR0050T0054L030

Solid End Mills

VF3XB
（Ball noze, Medium cut length, 3 flute, Taper neck）

VF3XBR0050T0054L030 EDP:450829

Product Information

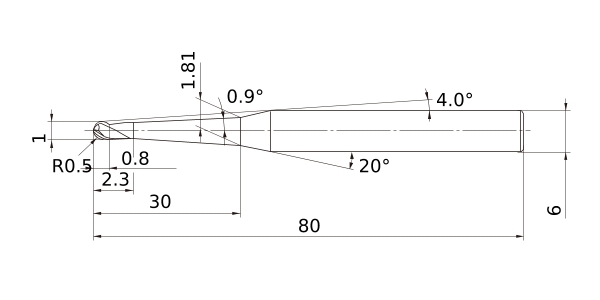

  • 3 flute ball end mill, high rigidity taper neck type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M
DC 1
DCON 6
BD2 1.81
B2 4.0°
BHTA2 0.9°
BHTA3 20°
LF 80
LU 2.3
LB2 30
APMX 0.8
FHA 30°
RE 0.5
Peripheral effective cutting edge count: ZEFP 3
R Tolerance - -0.01
R Tolerance + 0.01
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VF
2D Model (DXF)
CAD data name Download
VF3XBR0050T0054L030
CAD
