Solid End Mills

VF2SB_INCH
（Ball nose, Short cut length, 2 flute, For hardened materials）

VF2SBD1/2 EDP:613843

Product Information

  • 2 flute ball nose end mill with Impact Miracle coating for high hardened materials.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

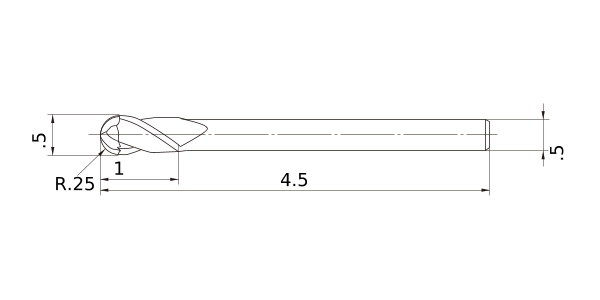

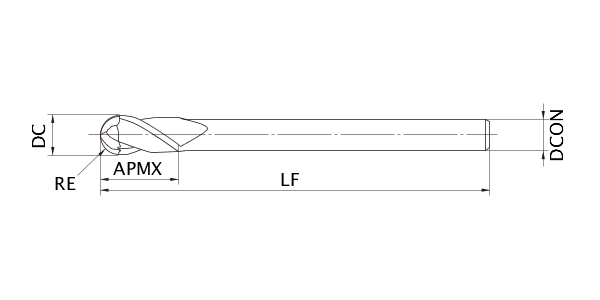

Unit of Length I
DC .5
DCON .5
LF 4.5
APMX 1
FHA 30°
RE .25
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -.0002
R Tolerance + .0002
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated VF
2D Model (DXF)
CAD data name Download
VF2SBD1-2
CAD
