Solid End Mills

VF2XLB_INCH
（Ball nose, Long cut length, 2 flute, For hardened materials）

VF2XLBD1/32N4D EDP:613641

METRIC Products
Shape Series Geometry Cutter Body Type Feature Structure
VF2XLB Ball Nose Type
  • Long Neck
  • 2 flute long neck ball nose end mills with Impact Miracle coating for high hardness materials.
 Solid Carbide
VF2XLBS Ball Nose Type
  • Long Neck
  • 2 flute long neck ball nose end mill for high-speed machining of hardened steel.
  • Short shank type suitable for use with a shrink fit holder.
 Solid Carbide

Product Information

  • 2 flute long neck ball nose end mills with Impact Miracle coating for high hardness materials.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I

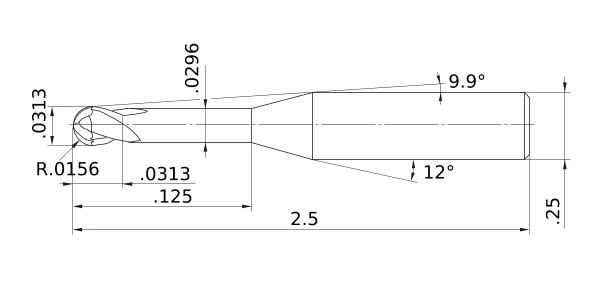

DC .0313
DCON .25
DN .0296
B2 9.9°
BHTA2 12°
LF 2.5
LU .125
APMX .0313
FHA 30°
RE .0156
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -.0002
R Tolerance + .0002
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated VF
2D Model (DXF)
CAD data name Download
VF2XLBD1-32N4D
CAD
