Solid End Mills

VF2XLB_INCH
(Ball nose, Long cut length, 2 flute, For hardened materials)

VF2XLBD1/8N6D EDP:613712

Product Information

  • 2 flute long neck ball nose end mills with Impact Miracle coating for high hardness materials.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock

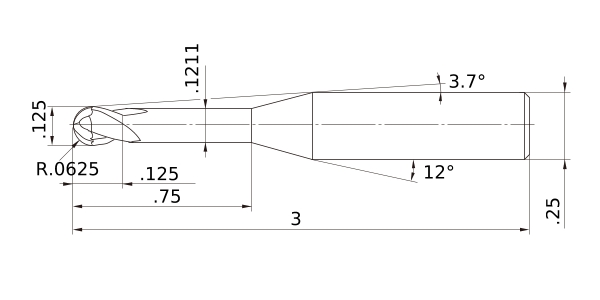

Unit of Length I
DC .125
DCON .25
DN .1211
B2 3.7°
BHTA2 12°
LF 3
LU .75
APMX .125
FHA 30°
RE .0625
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -.0002
R Tolerance + .0002
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated VF
2D Model (DXF)
CAD data name Download
VF2XLBD1-8N6D
CAD

3D Light Model (STP,STL)
CAD data name Download
VF2XLBD1-8N6D
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
