Solid End Mills

VFMD_INCH
(End mill, Medium cut length, For hardened materials)

VFMDD1/2 EDP:613940

Product Information

  • End mills with Impact Miracle coating for high hardness materials.

The actual product may differ from the displayed image.

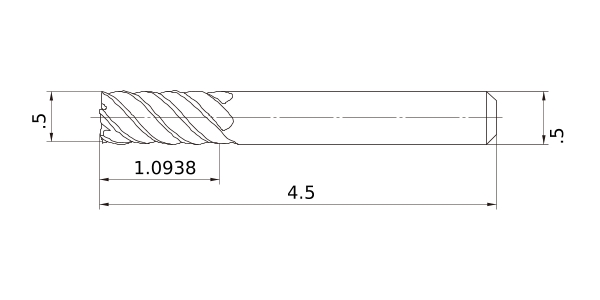

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock
Unit of Length I
DC .5
DCON .5
LF 4.5
APMX 1.0938
FHA 45°
Peripheral effective cutting edge count: ZEFP 6
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0012
Coated VF
2D Model (DXF)
CAD data name Download
VFMDD1-2
CAD

3D Light Model (STP,STL)
CAD data name Download
VFMDD1-2
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
