Solid End Mills

VQMHZVOH_INCH
（End mill, Medium cut length, 3 flute for drilling and slotting with coolant holes）

VQMHZVOHD5/16 EDP:657512

Product Information

  • 3 flute end mill for slotting and shoulder milling.
  • The through coolant realize stable drilling and pocket machining.
  • Featuring irregular helical geometry for reduced vibration.

The actual product may differ from the displayed image.

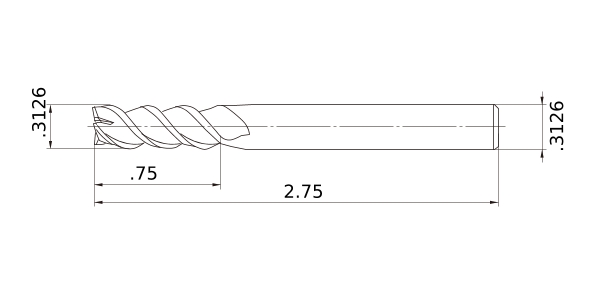

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I
DC .3126
DCON .3126
LF 2.75
APMX .75
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated VQ
3D Light Model (STP,STL)
CAD data name Download
VQMHZVOHD5-16
CAD
