Solid End Mills >iMX_C6HV_INCH >IMX10C6HV0375R030M

Solid End Mills

iMX_C6HV_INCH
（Corner radius head, Multi-flute, Irregular helix）

IMX10C6HV0375R030M EDP:682873

Product Information

  • High machining efficiency due to multi-flute design.
  • Irregular helix controls vibration and achieves stable machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP7020
Sales unit 1
Stock

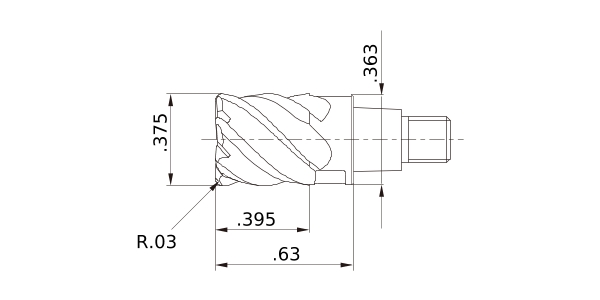

Unit of Length I
DC .375
DCON .363
LH .63
APMX .395
FHA 36°,40°
RE .03
Peripheral effective cutting edge count: ZEFP 6
R Tolerance - -.0008
R Tolerance + .0008
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
2D Model (DXF)
CAD data name Download
IMX10C6HV0375R030M
