Solid End Mills >iMX_C12HV_INCH >IMX20C12HV0750R030M

Solid End Mills

iMX_C12HV_INCH
(Corner radius head, Multi-flute, Irregular helix)

IMX20C12HV0750R030M EDP:682902

Product Information

  • High machining efficiency due to multi-flute design.
  • Irregular helix controls vibration and achieves stable machining.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade EP7020
Sales unit 1
Stock
Unit of Length I

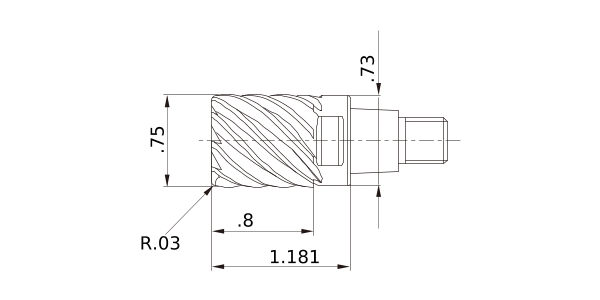

DC .75
DCON .73
LH 1.181
APMX .8
RE .03
Peripheral effective cutting edge count: ZEFP 12
R Tolerance - -.0008
R Tolerance + .0008
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0012
3D Light Model (STP,STL)
CAD data name Download
IMX20C12HV0750R030M
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
