Solid End Mills

iMX_B4HV_INCH
(Ball nose head, 4 flute, Irregular curve)

IMX12B4HV0500M EDP:682937

Product Information

  • Irregular curve cutting edge controls vibration and achieves stable machining of difficult-to-cut materials and is suitable for long overhang applications.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade EP7020
Sales unit 1
Stock
Unit of Length I

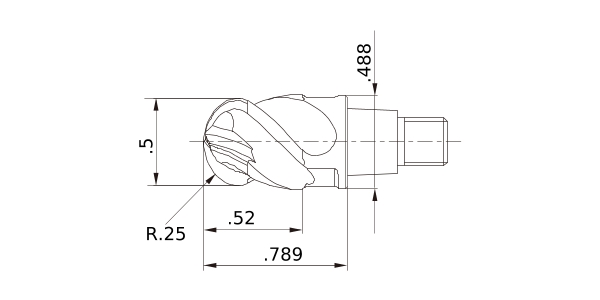

DC .5
DCON .488
LH .789
APMX .52
FHA 45°
RE .25
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -.0004
R Tolerance + .0004
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
3D Light Model (STP,STL)
CAD data name Download
IMX12B4HV0500M
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
