Solid End Mills

VQJHV_INCH
（End mill, Semi-long cut length, 4 flute, Irregular helix flutes）

VQJHVD3/16 EDP:690937

Product Information

  • SMART MIRACLE irregular helix end mills for reduced vibration and for delivering a stable performance on difficult-to-cut materials and long overhang applications.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I

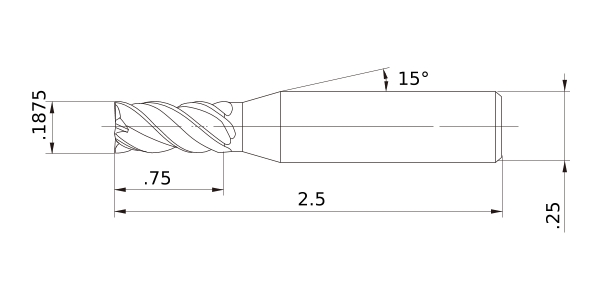

DC .1875
DCON .25
BHTA2 15°
LF 2.5
APMX .75
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated VQ
