Solid End Mills

iMX_S3HV_INCH
(Square head, 3 flute, Irregular helix)

IMX16S3HV0625P EDP:826988

Product Information

  • 3-flute end mills suitable for side milling, slotting and plunging.
  • Irregular helix controls vibration and achieves stable machining.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade EP7020
Sales unit 1
Stock
Unit of Length I

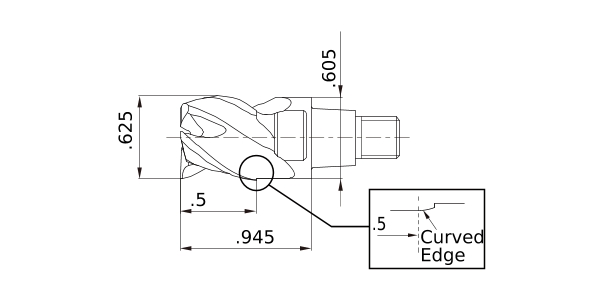

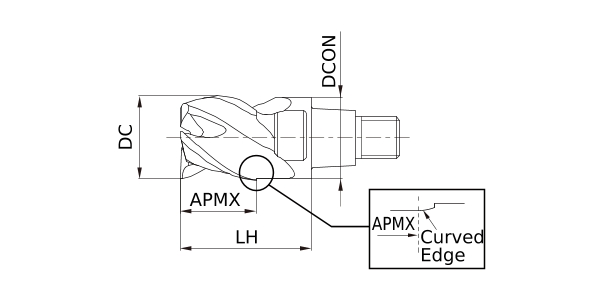

DC .625
DCON .605
LH .945
APMX .5
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0012
3D Light Model (STP,STL)
CAD data name Download
IMX16S3HV0625P
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
