Solid End Mills

(Ball nose head, 4 flute, Irregular curve, with coolant hole)

IMX10B4HV0375ME EDP:827163

Product Information

  • Coolant thru design allows for effective chip evacuation.
  • Irregular curve cutting edge controls vibration and achieves stable machining of difficult-to-cut materials and is suitable for long overhang applications.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade EP7020
Sales unit 1
Unit of Length I

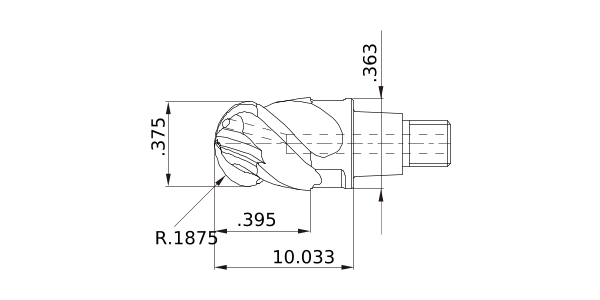

DC .375
DCON .363
LH 10.033
APMX .395
FHA 45°
RE .1875
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -.0004
R Tolerance + .0004
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
3D Light Model (STP,STL)
CAD data name Download


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
