Solid End Mills

iMX_B4HV_E_INCH
(Ball nose head, 4 flute, Irregular curve, with coolant hole)

IMX16B4HV0625ME EDP:827180

Product Information

  • Coolant thru design allows for effective chip evacuation.
  • Irregular curve cutting edge controls vibration and achieves stable machining of difficult-to-cut materials and is suitable for long overhang applications.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade EP7020
Sales unit 1
Stock
Unit of Length I

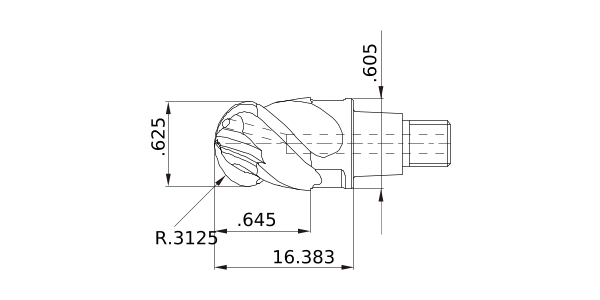

DC .625
DCON .605
LH 16.383
APMX .645
FHA 45°
RE .3125
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -.0008
R Tolerance + .0008
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0012
3D Light Model (STP,STL)
CAD data name Download
IMX16B4HV0625ME
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
