Solid End Mills

MP2MB_INCH
（Ball nose, Medium cut length, 2 flute）

MP2MBD1/16 EDP:10579381

Product Information

  • 2-flute ball nose end mills with medium cutting edge length for general use. Excellent performance for a wide range of workpiece materials such as carbon steel, alloy steel and hardened steel.

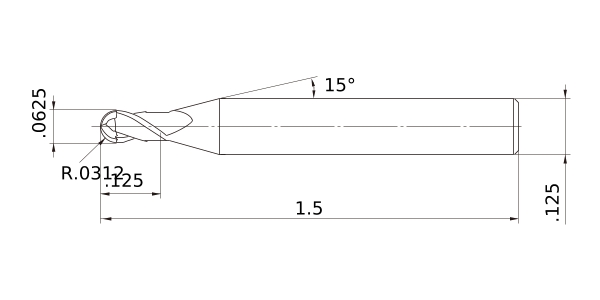

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I
DC .0625
DCON .125
BHTA2 15°
LF 1.5
APMX .125
FHA 30°
RE .0312
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -.0002
R Tolerance + .0002
Coated MS+

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
