Solid End Mills >VQ4MRB-FB >VQ4MRBD0400R030-FB

Solid End Mills

VQ4MRB-FB
（Corner radius end mill, Medium cut length, 4 flute, For Swiss-Type lathe）

VQ4MRBD0400R030-FB EDP:62185158

Product Information

  • A corner radius end mill with high fracture resistance.
  • A turn milling machine tool for Swiss-type automatic lathes for machining lobe surfaces.

The actual product may differ from the displayed image.

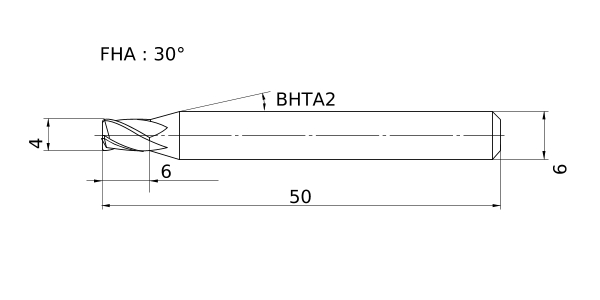

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M
DC 4
DCONMS 6
LF 50
APMX 6
FHA 30°
RE 0.3
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VQ

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
