Solid End Mills

VQ4XLB_INCH
（Ball nose, Short cut length, 4 flute, Long neck）

VQ4XLBDU100N5D EDP:23986299

Product Information

  • Fracture resistance is improved by adopting a new S-shape, reinforced cutting edge geometry.
  • SMART MIRACLE coating provides better wear resistance when machining difficult-to-cut materials.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

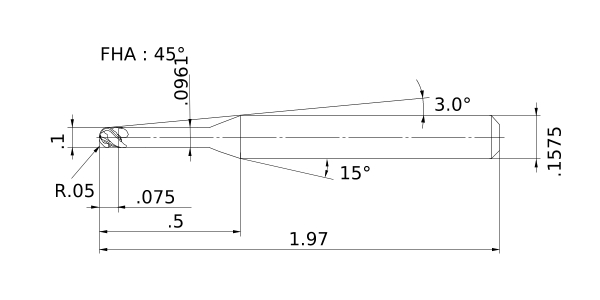

Unit of Length I
DC .1
DCONMS .1575
DN .0961
B2 3.0°
BHTA2 15°
LF 1.97
LU .5
APMX .075
FHA 45°
RE .05
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -.0003
R Tolerance + .0003
Coated VQ
2D Model (DXF)
CAD data name Download
VQ4XLBDU100N5D
