Spare Parts >RBH2030N

Spare Parts

RBH2030N EDP:297650

Product Information

The actual product may differ from the displayed image.

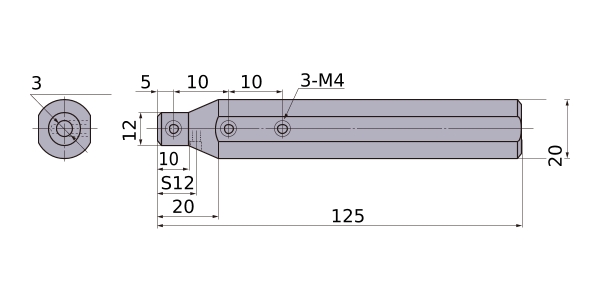

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

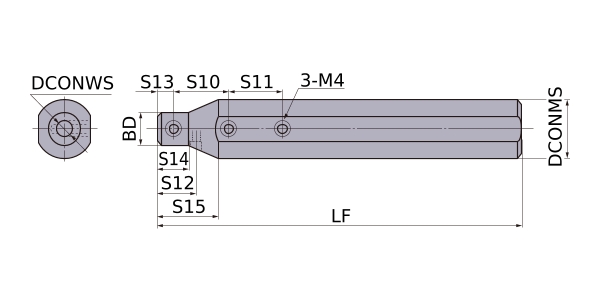

Unit of Length M
DCONWS 3
DCONMS 20
BD 12
LF 125
S10 10
S11 10
S13 5
S14 10
S15 20
2D Model (DXF)
CAD data name Download
RBH2030N
