GYALUS16R90B-E06 EDP:503839

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length M

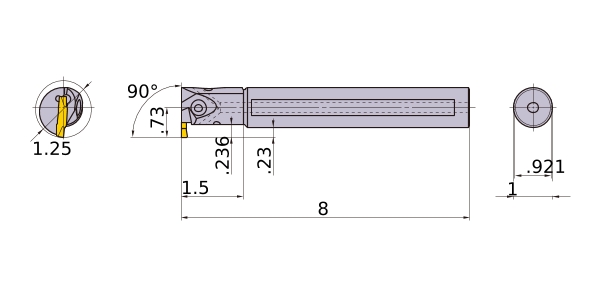

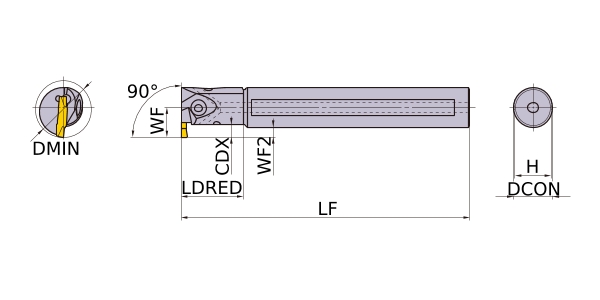

DMIN 31.75
DCON 25.4
LF 203.2
CDX 5.994
LDRED 38.1
WF 18.542
H 23.393
CW 2.388
WF2 5.842
